| P1.25GOB | P1.53 GOB | P1.86GOB | P2.5GOB | |

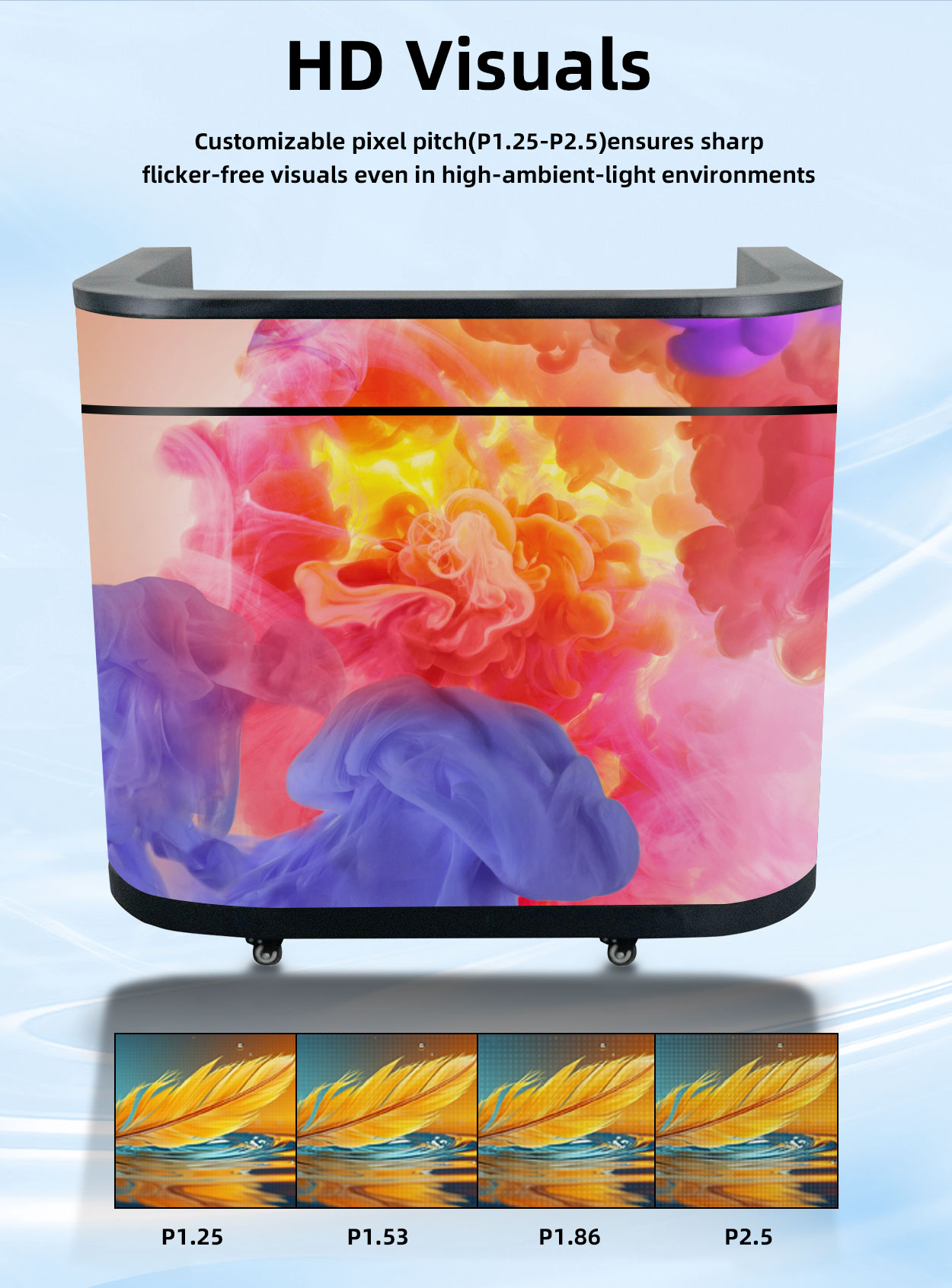

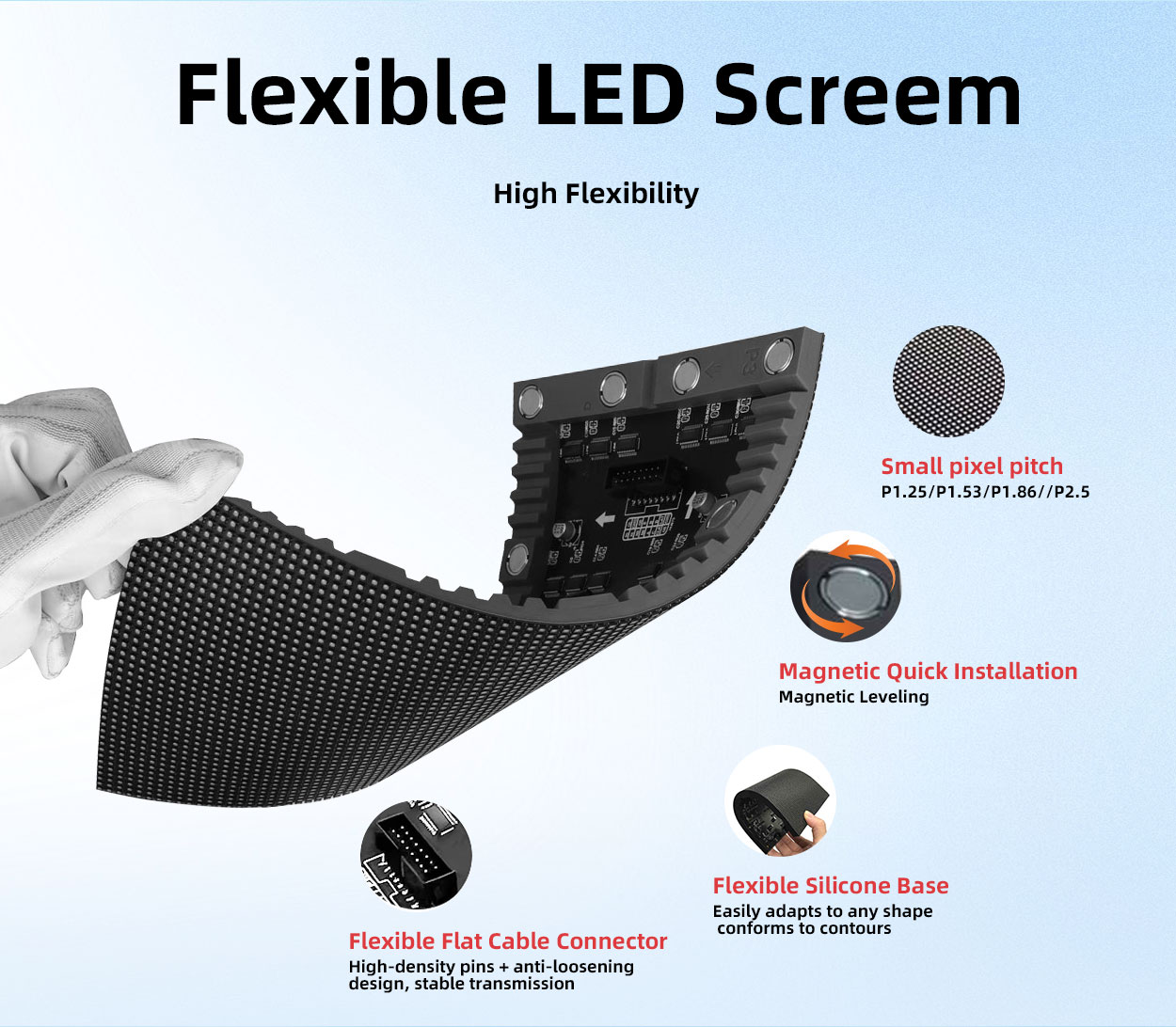

| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 2.5 |
| Physical Density (dot/sqm) | 640,000 | 422,500 | 289050 | 160000 |
| LED type | 1RGB | |||

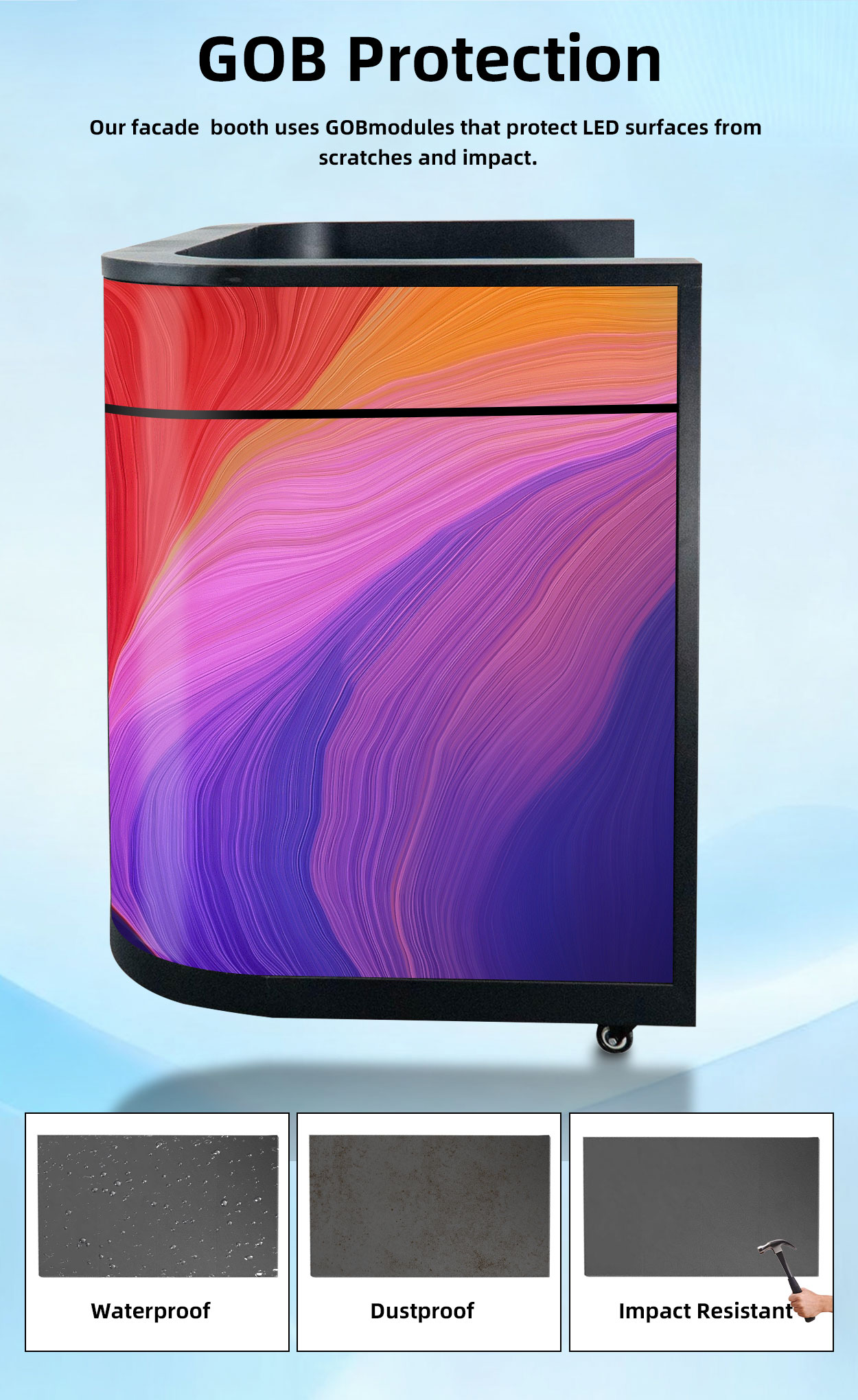

| LED technology | GOB | |||
| Module Size (mm) | 320x160 | |||
| Brightness(cd/sqm) | 1000-1100 | 1000-1100 | 1000-1050 | 1000-1050 |
| Refresh Rate(Hz) | 3840 | |||
| Drive Mode | Constant Current Drive | |||
| Horizontal Viewing Angle(Deg) | 170 | |||
| Vertical Viewing Angle(Deg) | 170 | |||
| Modules size | 320x160mm 960x480 768x384 |
|||
| Cabinet Max Power (W) | 700 | |||
| Cabinet Average Power (W) | 600 | |||
| Cabinet Size(mm) | 1065x585x1100 | |||
| Cabinet Thickness(mm) | 60 | |||
| Cabinet Material | Die-casting Aluminum | |||
| Color(M) | 16.7 | |||
| Input Voltage | AC100V-240V +/-10% | |||
| Frame Frequency(Hz) | 50-60 | |||
| Protection Rating | IP43 | |||
| Operating Environment | Indoor | |||
| Operating Temperature(℃) | -40℃-60℃ | |||
| Storage Humidity(RH) | 40%-60% | |||
| Lifepan(Hours) | 100,000 | |||
