Star Series

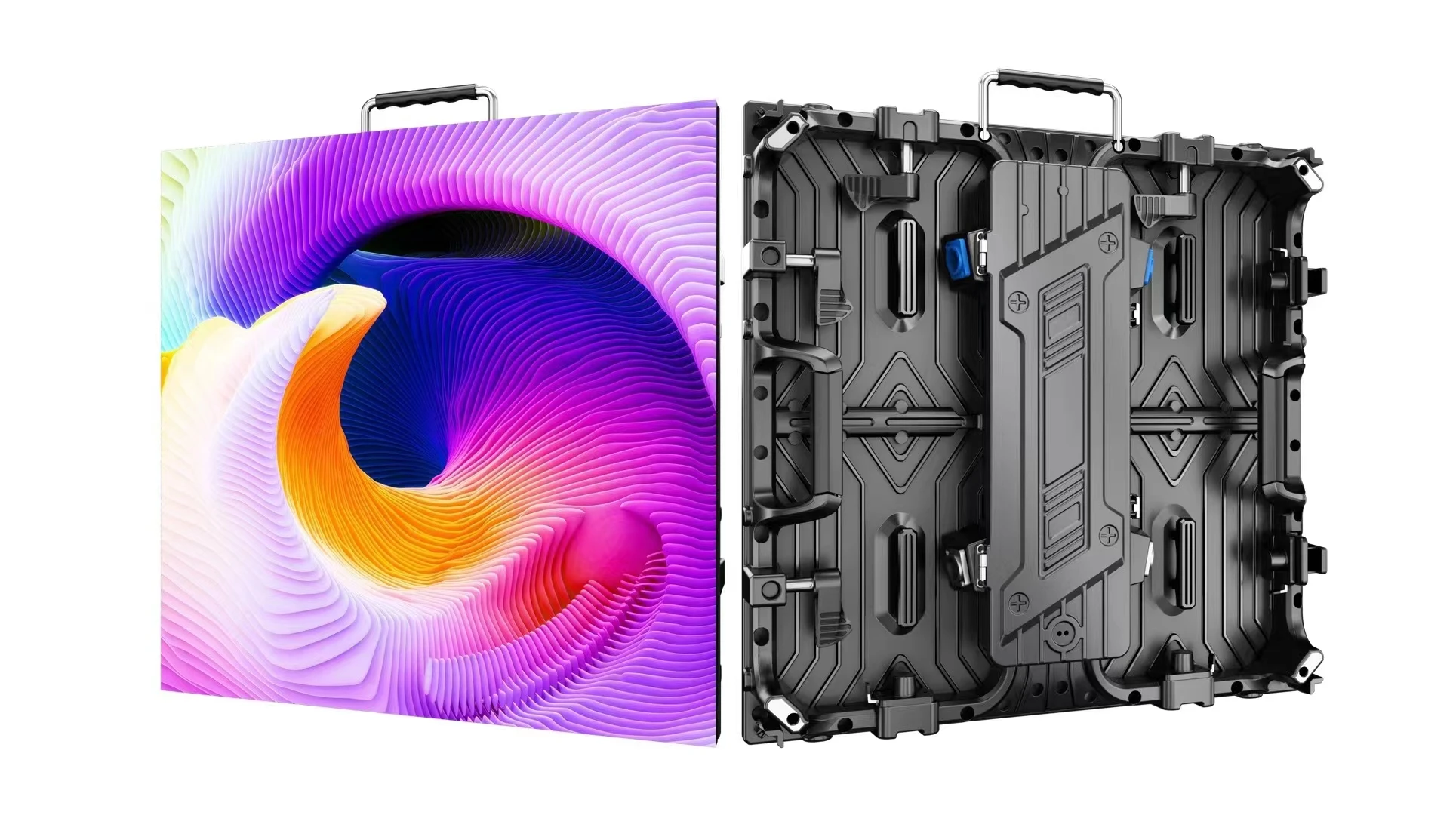

Star II Rental Large Stage Led Wall

Introduction

Introduction

Product Description

Be LED display’s STAR in leasing business

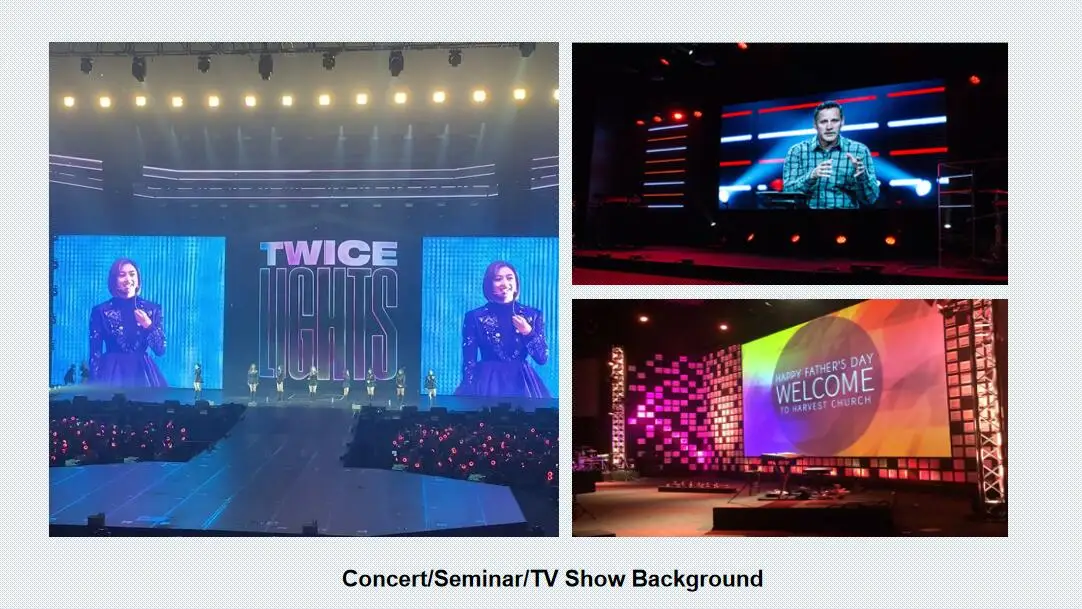

Star Series Series- the new popular rental led cabinet for concerts, trade show, exhibitions backdrop

Specification

Model No.	Star Series-I2.6	Star Series-I2.98	Star Series-I3.91	Star Series-O3.91
Pixel pitch	2.604mm	2.98mm	3.91mm	3.91mm
LED Type	SMD 1515	SMD2121	SMD2121	SMD1921
Pixel Density	147475 pixel/㎡	112896 pixel/㎡	65410 pixel/㎡	65410 pixel/㎡
Scan	1/32 scan	1/28 scan	1/16 scan	1/16 scan

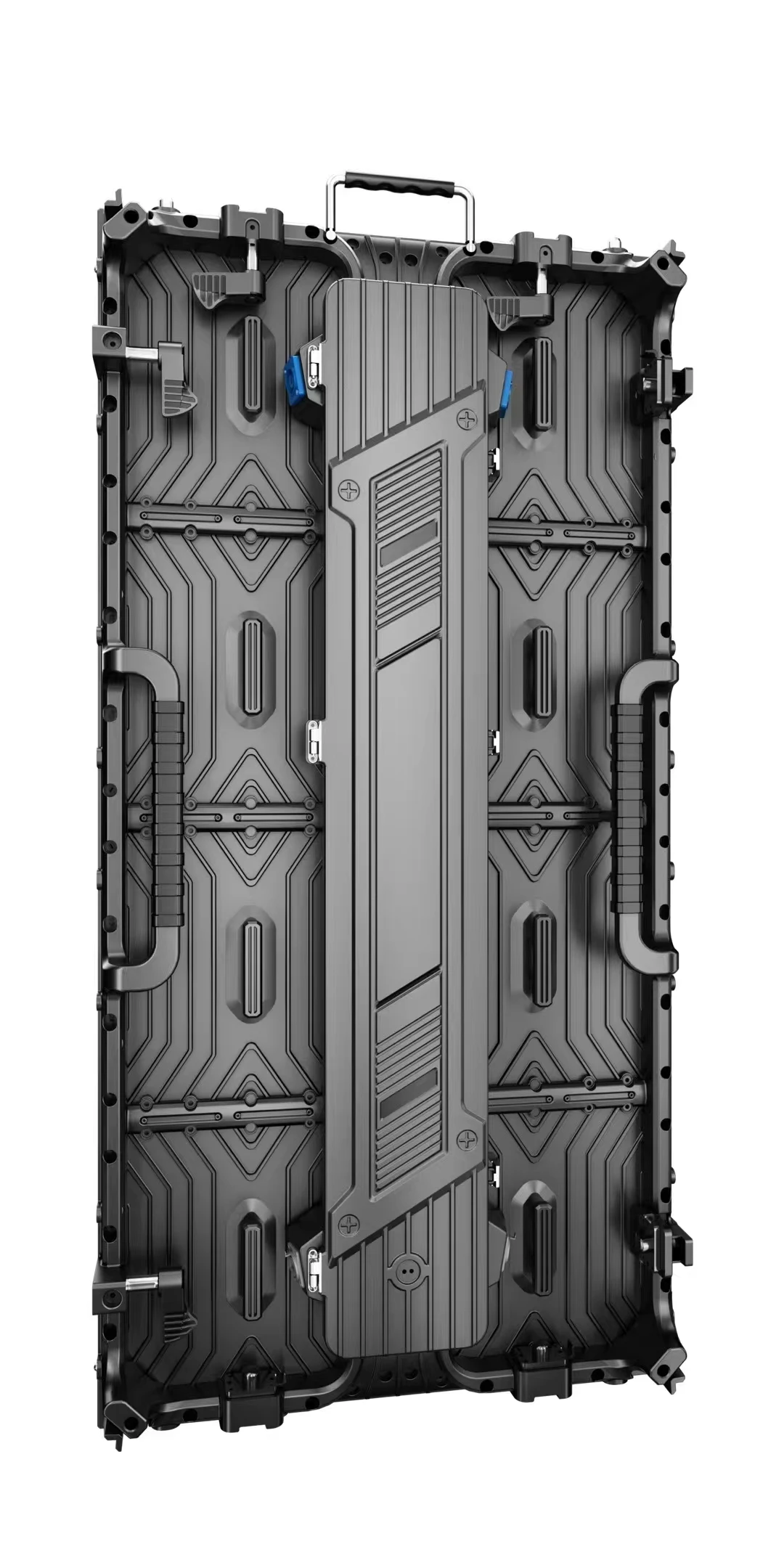

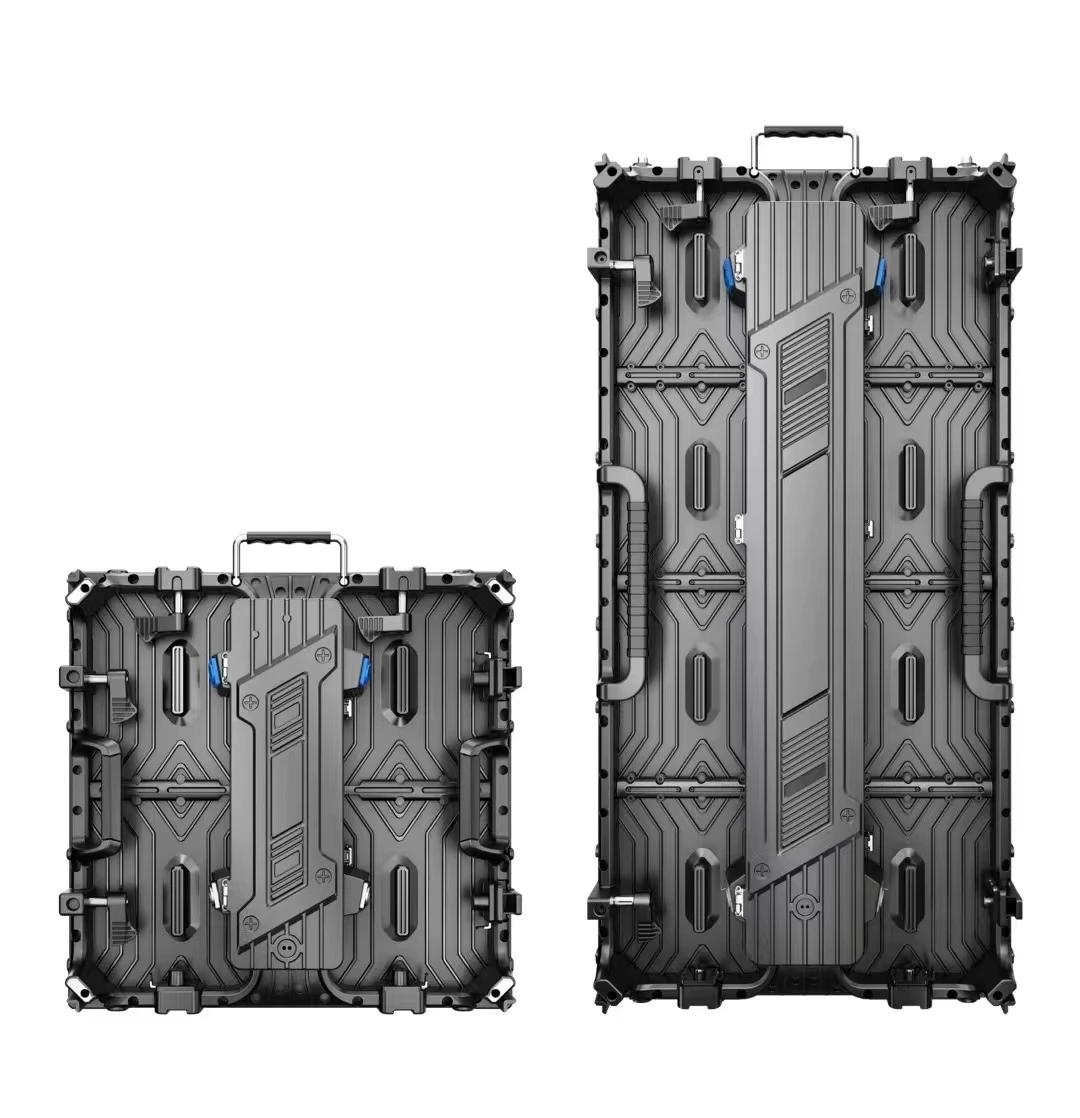

Cabinet Material	Die casting aluminum

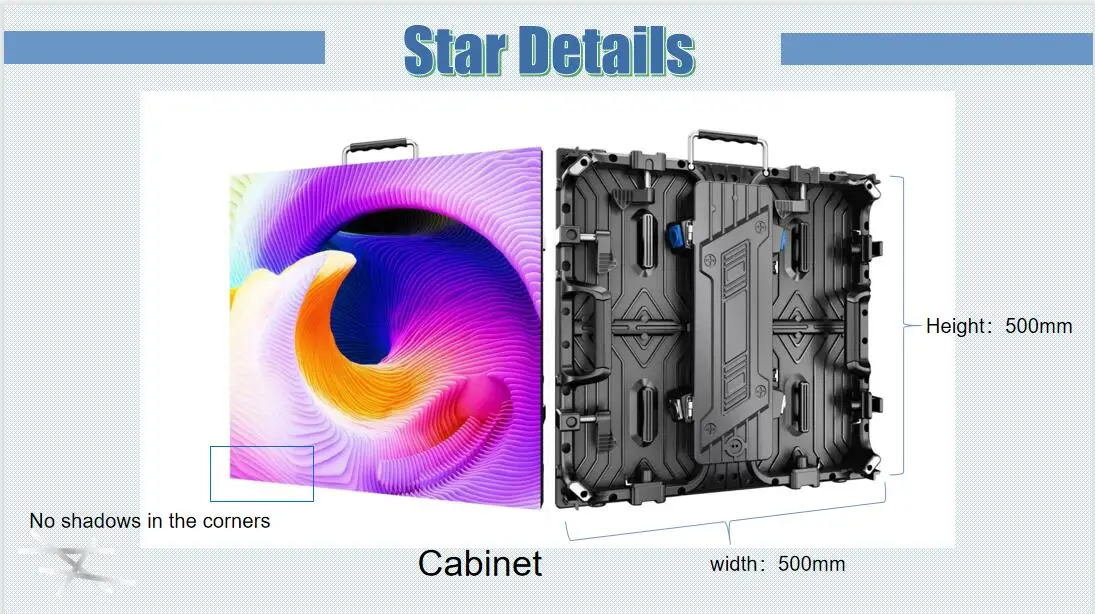

Cabinet Dimension (WHD)	500x500x85mm/19.7”19.7”3.4”
Cabinet Wight	8kg
Cabinet Resolution	192*192dots	168*168dots	128*128dots	128*128dots
Max power Consumption	800w/㎡
Average power Consumption	270w/㎡
Brightness	1200 cd/㎡	1200 cd/㎡	1200cd/㎡	5000cd/㎡
Viewing Angle	H: 120° V:120°
Refresh Rate	5580Hz
Gray Scale	16bits
High contrast	4000:1
IP Rating	IP43				IP65
Operating Temperature	-20℃~ +60 ℃
Lifetime	100,000hrs

Star Series features:

1. Easy to install and carry

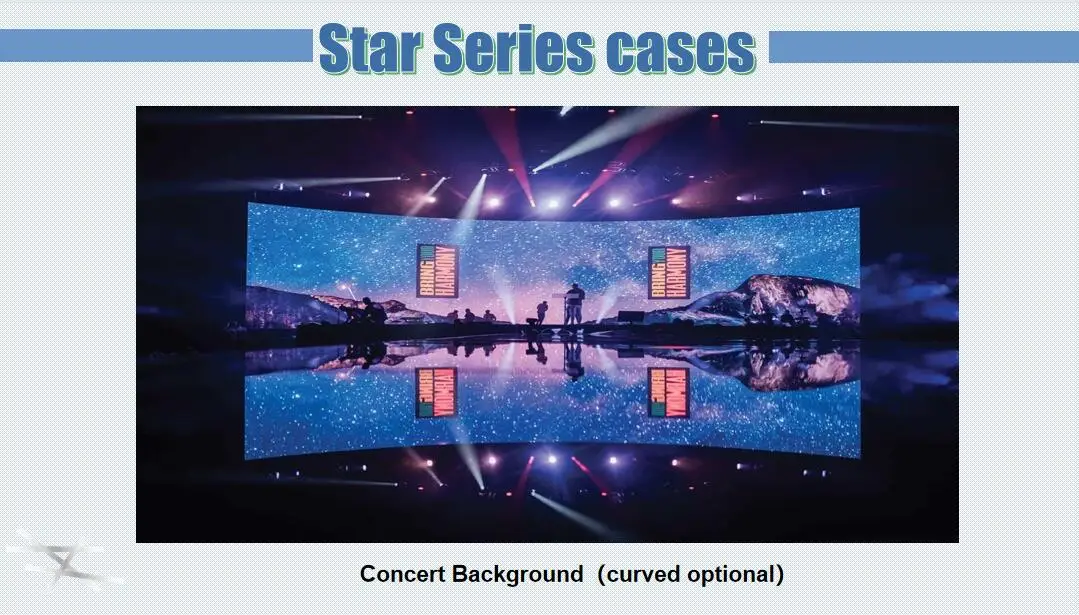

2. Curved optional

3. More economical

4. Front maintenance for outdoor application

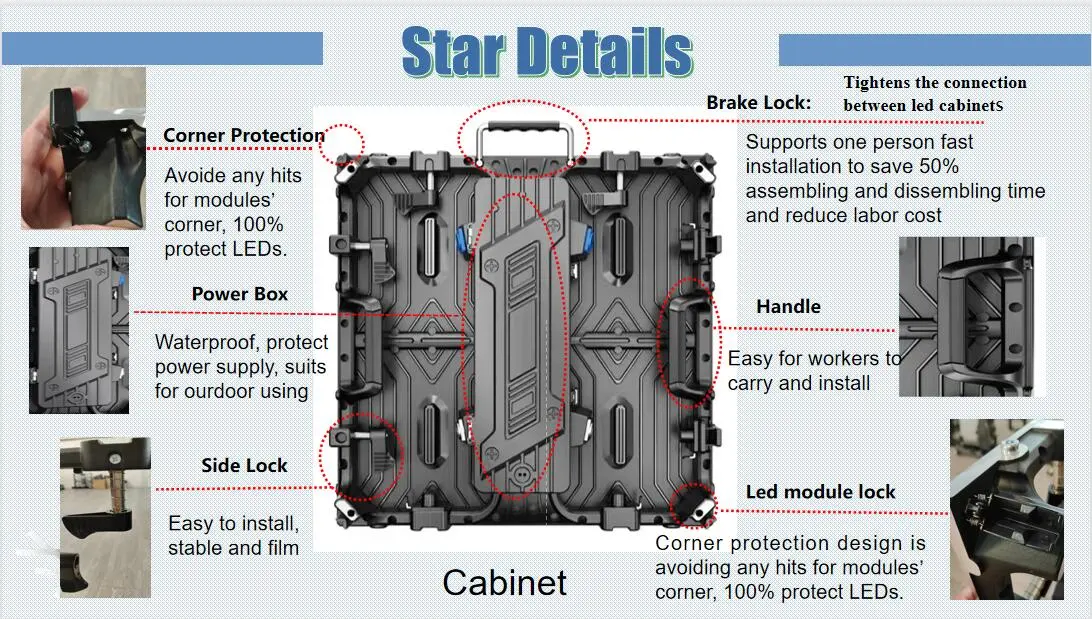

5.Corner protection design is avoiding any hits for modules’ corner, 100% protect LEDs.

6.Supports one person fast installation to save 50% assembling and dissembling time and reduce labor cost

Company Introduction

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

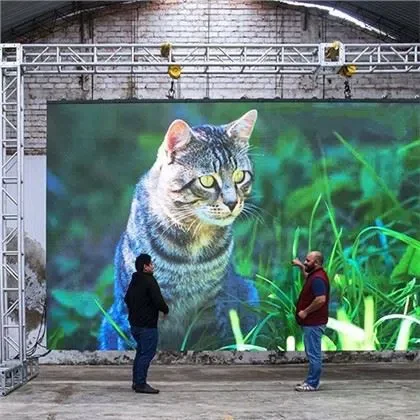

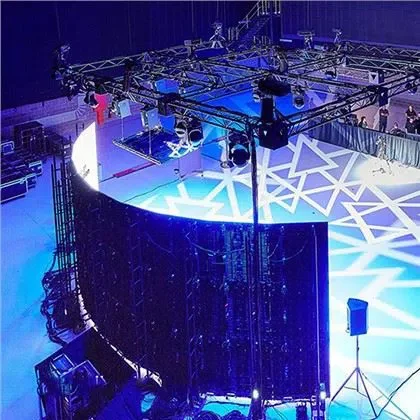

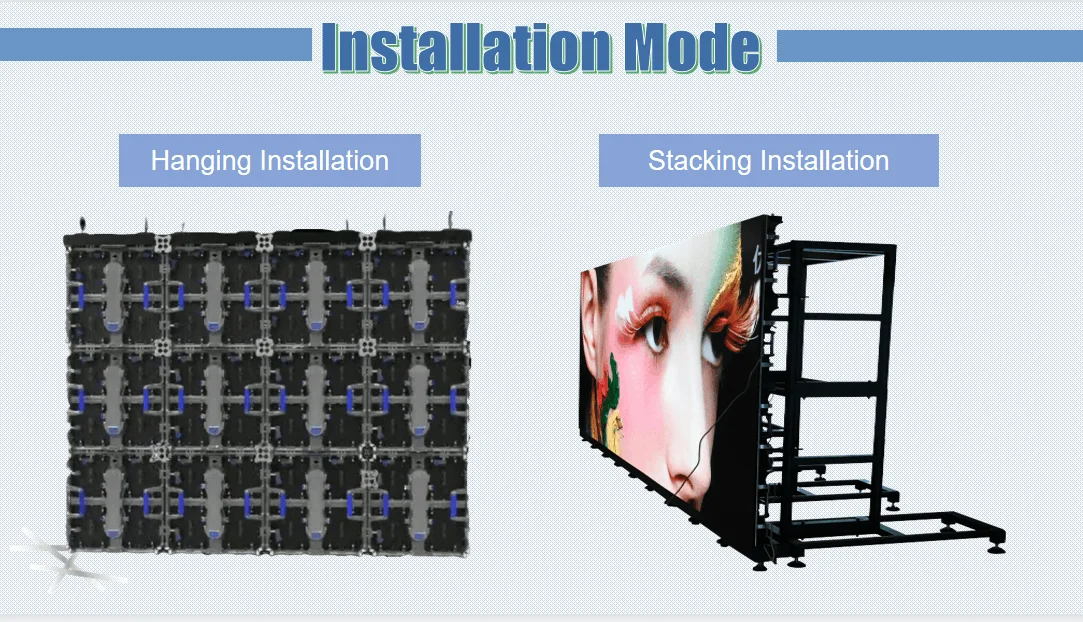

Hanging Installation and stacking Installation

FAQ

Q1. What's fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.

Q2. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.

Q3. The display will come to me in parts?and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can remote to help you to adjust the software,everything.

Q4. What's the function of video processor?
It can transfer the video source to make the screen performance more clear. Sometimes there has HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.

Q5. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be
provided.
