| Pixel Pitch | P3.91-7.82 (Indoor） |
P2.6-5.2 | P2.8-5.6 |
| Pixel Pitch | 3.91mm(H),7.82mm(V) | 2.6mm(H),5.2mm(V) | 2.8mm(H),5.6mm(V) |
| Brightness | 1000-5500cd/sqm | 1000-5500cd/sqm | 1000-5500cd/sqm |
| Panel Normal Dimensions | 1000*1000mm | ||

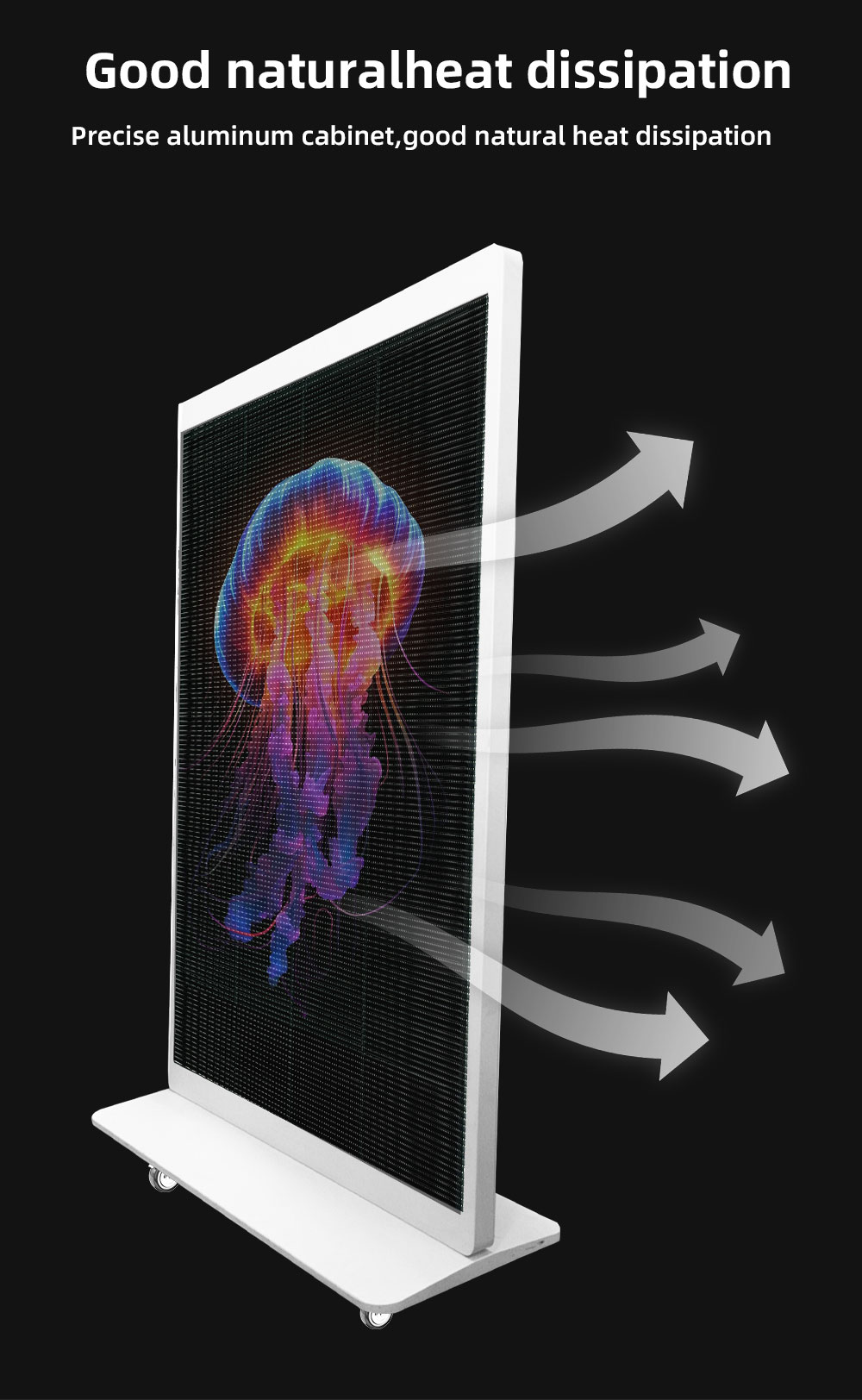

| Panel Material | Aluminum | ||
| Module size | 500*125mm | ||
| Lamp | SMD1921/SMD2121 | SMD1415/SMD1515 | SMD1921/SMD2121 |
| Scan mode | 1/16s 1/8s | 1/12s | 1/11s |
| Pixel Density | 32768dots/mm² | 73964dots/mm² | 63775dots/mm² |

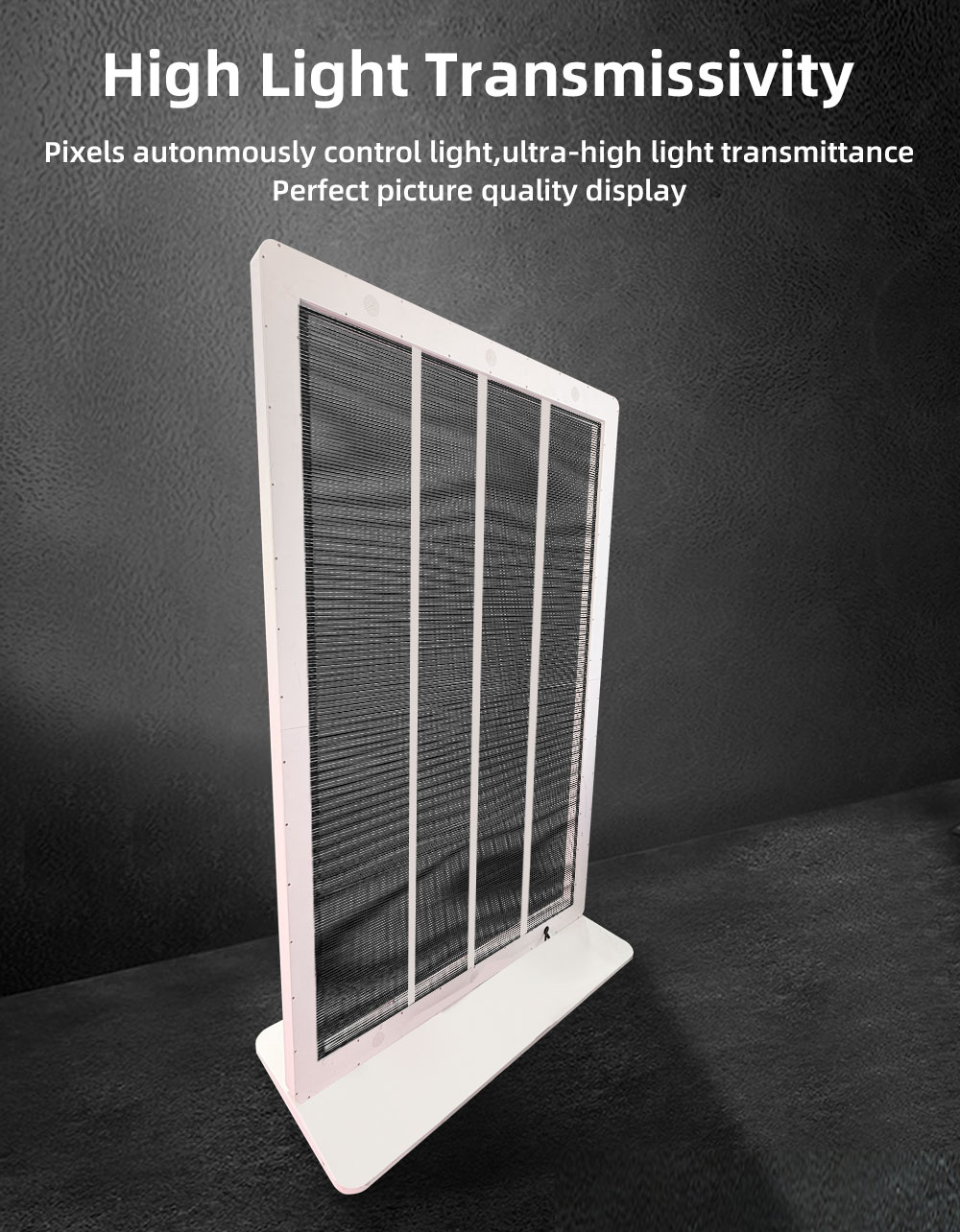

| Transparency Rate | 85% | 70% | 75% |
| Refresh rate | 3840hz | ||
| Average power consumption | 100W/㎡-200W/㎡ | 200W/㎡ | |
| Max power consumption | 400W/㎡-600W/㎡ | 600W/㎡ | |
| Viewing Angle | H:140°V:140° | ||
| Operating Temperature | -20℃～+70℃ / -40℃～+70℃ | ||
| IP Rating | IP43/IP65 | ||
| Life Time | ≥100000h | ||
